PrimeX 41
6.264,42 €
Versandfertig in 1 Tag, Lieferzeit 4 - 6 Wochen
Produktinformationen "PrimeX 41"
4.1 MP resolution | +/- 0.10 mm 3D accuracy1 | 180 FPS native frame rate | 250+ FPS max frame rate2
The Primex 41 is the pinnacle of large-scale 3D measurement systems, offering over 100 feet of passive marker range and 150 feet with Signature Pulse Active3 technology. Its precision, with positional errors less than 0.10 mm and rotational errors under 0.5°, is unmatched, making it ideal for large-scale tracking and high-speed motion capture.
This camera features intuitive design, custom-engineered “fast glass” lenses, and optional wide-view configurations to maximize field of view and accuracy. Integrated image processing, outdoor capture capability, and synchronized reference video recording provide a seamless user experience, while flexible synchronization options ensure compatibility with professional setups. A robust SDK supports OEM applications, enabling customized integrations for diverse industries.
1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop.
2.
| Frame rate | Resolution | FOV (standard 12.5mm lens) |
|---|---|---|
| 180 fps | 2048×2048 | 51°×51° |
| 240 fps | 2048×1440 | 51°×37° |
| 500 fps | 2048×720 | 51°×18° |
| 1000 fps | 2048×352 | 51°×9° |
3.
Signature Pulse Active markers provide their own unique ID, resulting in
100% error free labels. When introduced into the tracking area, the LED
markers are acquired in < 0.1 seconds. Unique marker placements
based on spatial separation, normally required for passive marker
tracking, are not required for distinguishing multiple rigid bodies.
| 3D Accuracy: | +/- 0.10 mm |
|---|---|
| Active Marker Range: | 45 m (150') |
| Camera Body: | 1/4"-20 tripod thread (×2), 2 digit numeric LEDs status indicators, Full-color LED health and activity indicator, Sculpted from aluminum and polycarbonate |
| Compatible Software: | Camera SDK, Motive, NatNet SDK |
| Connections: | Ethernet camera sync, GigE data port, PoE or PoE+1 power |
| Depth: | 5.19 inches (13.2 cm) |
| Global Shutter : | Default Speed: 0.25 ms, Maximum Speed: 4.0 ms at 250 fps, Minimum Speed: 0.01 ms |
| Height: | 4.96 inches (12.6 cm) |
| Image Processing Types: | MJPEG Grayscale, Object, Raw Greyscale, Segment |
| LED Ring: | 20 LEDs, 850 nm infrared, Intensity control, Strobe mode, Ultra High Power |
| Latency: | 5.5 ms |
| Lens & Filter: | 850 nm band-pass filter, Adjustable F-stop, Adjustable focus |
| Native Framerate: | 180 Hz |
| Passive Marker Range: | 30 m (100') |
| Resolution: | 2048 × 2048 |
| Stock Lens: | 12 mm F#1.8 / 51° horizontal FOV / 51° vertical FOV |
| Weight: | 3.0 pounds(1.36 kg) |
| Width: | 4.96 inches (12.6 cm) |
Anmelden
Reichweite und Präzision. Das präziseste großflächige 3D-Messsystem der Welt wurde mit der Prime 41-Technologie gebaut. Primex hat es besser gemacht.
Unglaubliche Reichweite. 100' passive Kamera-zu-Marker-Reichweite und über 150' mit Signature Pulse Active3, alle mit diskreten Infrarot-Wellenlängen. Dies bietet bis zu 290.000 cu ft/Kamera für die Verfolgung von passiven Markern und über 1.000.000 cu ft/Kamera für die Verfolgung von aktiven Markern.
Primex entsprechen der Genauigkeit. Die von uns entwickelten Objektive mit geringer Verzeichnung und echter 10-Bit-Graustufentiefe reduzieren das Quantisierungsrauschen und verbessern die Präzision - für gestochen scharfe und schöne Bilder, bessere Zentroide und eine höhere 3D-Genauigkeit.
Megapixel sind wichtig, aber die Bildqualität ist noch wichtiger.
Shot with Primex 41
Intuitives und elegantes Design. Bei der Entwicklung der Primex-Serie haben wir den gesamten Lebenszyklus einer Motion-Capture-Kamera berücksichtigt - vom Auspacken über den Aufbau und die Aufnahme bis hin zur Demontage. Jeder Prozess ist elegant untergebracht, mit einem Augenzwinkern für Einfachheit und Benutzerfreundlichkeit.
Tracks Passive und Active Markers mit Positionsfehlern von weniger als +/-0,10 mm und Drehfehlern von weniger als 0,5 Grad. Für einige Tracking-Anwendungen ist es für Kunden von Vorteil, eine Kombination aus aktiven und passiven Markern zu verwenden.
Kameras kombinieren. Jede Kamera der Prime- und Primex-Familie kann zusammen verwendet werden, um die optimale Konfiguration für jeden Anwendungsfall zu erstellen. Das sind 11 verschiedene Kameras, die ausgewählt werden können, um die höchste 3D-Genauigkeit in jeder Umgebung zu liefern.

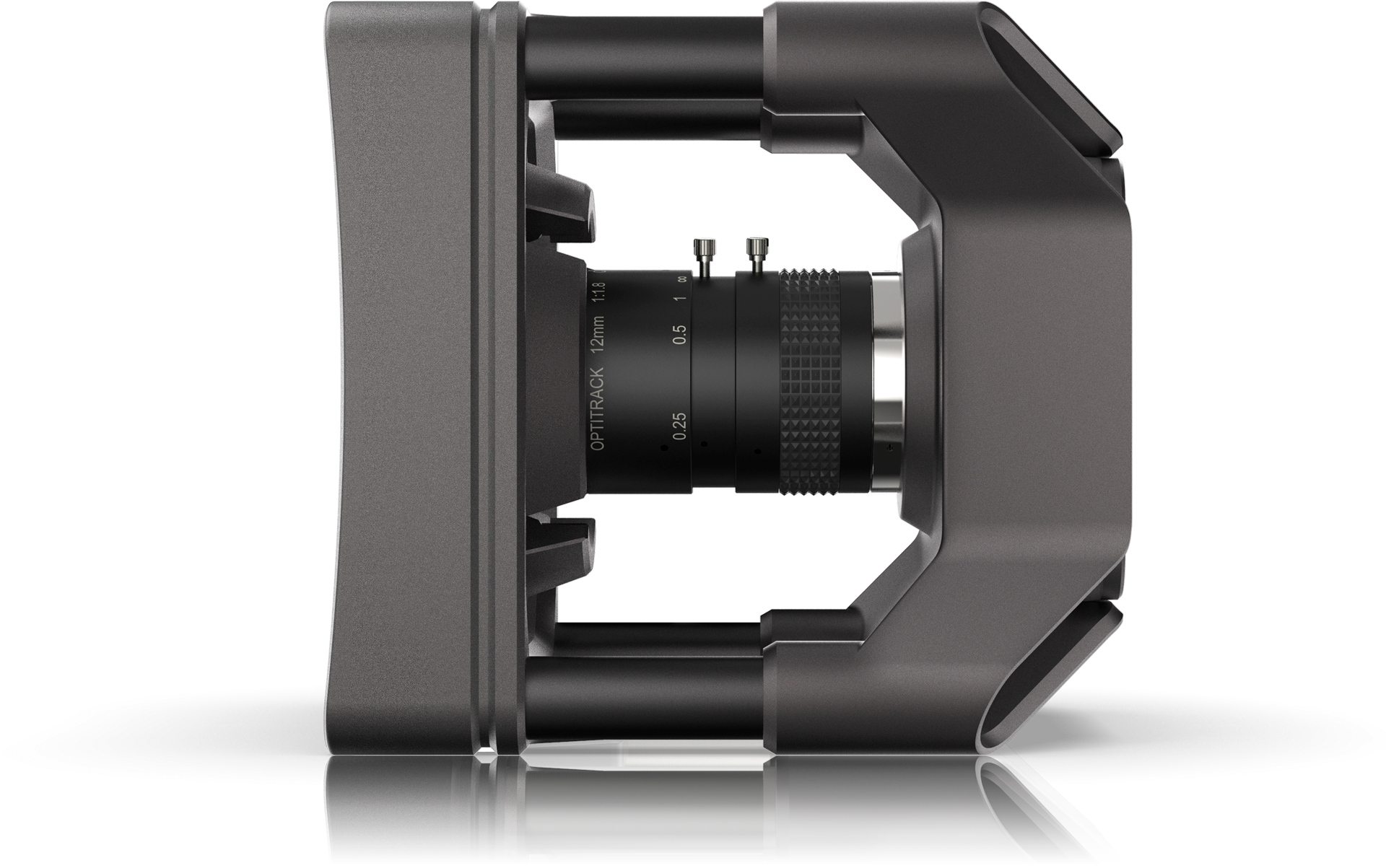

“Fast glass” 12mm lens. Wir entwickeln unsere eigenen "Fast-Glass"-Objektive mit extrem geringer Verzeichnung für eine optimale Markerverfolgung. Das 12-mm-Standardobjektiv des Primex 41 ist mit einer Breitband-Antireflexionsbeschichtung versehen, die die Lichtdurchlässigkeit zum Imager deutlich erhöht, was zu größeren Volumina und präziseren 3D-Daten führt.
Wählen Sie die Option mit breiterem Blickfeld. Das Standard PrimeX 41 bietet ein breites Sichtfeld von 51° x 51° (FOV). Für größere Volumina, die höchste Genauigkeit erfordern, ist das PrimeX 41W mit einem 65° x 65° 8,9 mm Weitwinkelobjektiv erhältlich. Dank des zusätzlichen Sichtfeldes können Benutzer weniger Kameras einsetzen, um Bewegungen in größeren Bereichen zu erfassen.
Leistungsstarke On-Board-Bildverarbeitung. Alle OptiTrack-Kameras verfügen über eine integrierte Bildverarbeitung. Die Algorithmen zur Identifizierung von Markern und Markerzentren sowie die Reihenfolge der Datenübermittlung sind wichtige Schritte, um sowohl eine weltweit führende Genauigkeit als auch eine geringe Latenzzeit zu erreichen.

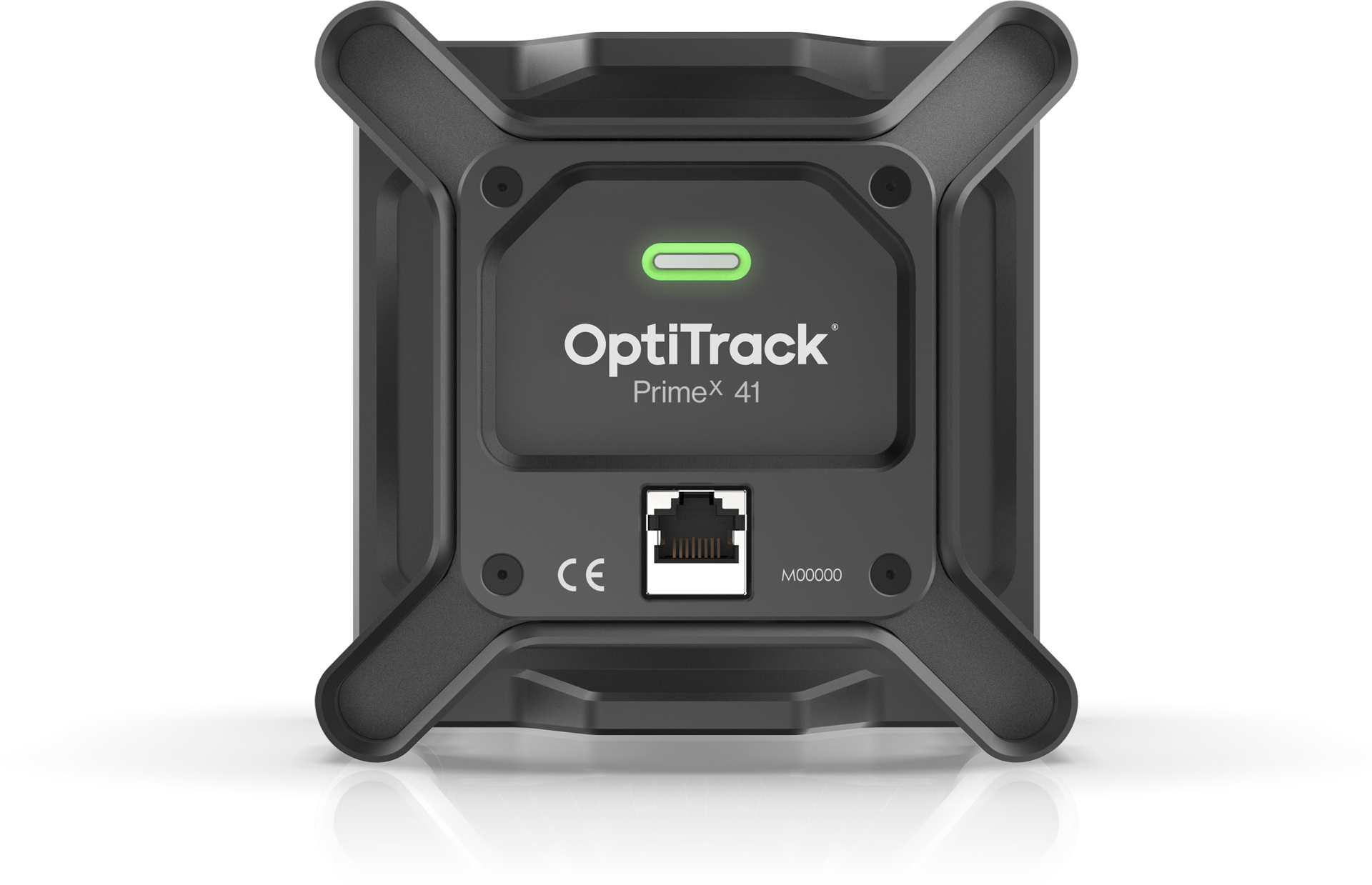

Statusanzeige auf der Kamera. Ihr OptiTrack-System zeigt Ihnen mit der benutzerdefinierbaren Farb-LED-Anzeige rund um das Objektiv an, was es gerade tut. Sie nehmen eine Aufführung auf? Jeder am Set weiß, dass das System aufnimmt. Sie wählen eine Kamera aus? Es ändert sofort die Farbe. Sie haben eine eigene Idee? Einfache Software-Steuerungen helfen Ihnen bei der Umsetzung.
Neues, leistungsstärkeres Stroboskop. Ultra-Hochleistungs-LEDs sorgen für eine verbesserte Reichweite bei jeder Verschlusseinstellung. Die Motion-Capture-Kamera mit der weltweit größten Reichweite wurde gerade noch besser.
Full resolution grayscale reference video. Alle Primex-Kameras können als Referenzvideoquelle verwendet werden - mit synchronisiertem, kalibriertem 3D-Overlay. Liefern und/oder zeichnen Sie Videos in voller Auflösung und mit voller Bildrate auf, mit 3D-Overlay von Markern, Starrkörpern, Skeletten usw.
Outdoor capture out-of-the-box. Primex 41 erweitert seine unglaubliche Reichweite auf Marker, auch für Außenaufnahmen. Bei passiven Markern beträgt die Reichweite im Freien (helles Sonnenlicht, Mittag) etwa 16 m (50'). Bei der Signature Pulse Active-Technologie beträgt die Reichweite > 21 m (70').
Easy set-up. Dank der Zielhilfe und der leicht zugänglichen Objektivsteuerung lässt sich das Primex 41 schnell und einfach einrichten.
External sync in/out, Genlock, and Time Code. Synchronisieren Sie mit dem eSync 2 alle Prime- und Primex-Kameras mit einem beliebigen Signal oder einer beliebigen Quelle - mit all der Funktionalität und Flexibilität, die Sie von einem professionellen Tracking-System erwarten. Die Kameras lassen sich mit Dutzenden von Quellen synchronisieren, darunter auch mit dem Genlock-Signal einer professionellen Kamera, wobei die Aufzeichnung und andere Ereignisauslösungen über allgemeine Eingänge und Softwarebefehle gesteuert werden können.
Verwenden Sie das Sync-Ausgangssignal als Master oder zum Triggern von Kraftmessplatten, EMGs und National Instrument DAQs für eine flexible und dennoch präzise Hardware-Synchronisation. Hochpräzises Frame-Timing kann auch mit SMTPE-Timecode erreicht werden, was die Bearbeitung und Protokollierung erleichtert. Das kostenlose und offene SDK von OptiTrack ermöglicht weitere Anpassungen innerhalb der Timing-Protokolle.
Es geht um mehr als nur Kameras. Zusätzlich zu den grundlegenden Funktionen, an die Sie sich gewöhnt haben, werden Sie auch einige neue Softwarefunktionen entdecken, bei denen Sie sich fragen werden, wie Sie jemals ohne sie ausgekommen sind. Genießen Sie Innovationen wie unsere kontinuierliche Kalibrierung, bei der nur bei der Erstinstallation ein Zauberstab erforderlich ist, der sich dann automatisch kalibriert, wenn Sie das System verwenden. Die Kalibrierung verschlechtert sich nicht mehr im Laufe der Zeit, bei Temperaturschwankungen oder wenn die Kamera gestoßen wird.
Images: Before and after Continuous Calibration
OEM & computer vision integration. Integrieren Sie Primex 41-Kameras in OEM-Tracking- oder Computer-Vision-Anwendungen über das kostenlose SDK, eine C/C++-Schnittstelle für die Steuerung von und den Zugriff auf Kamera-Rohdaten, Bildverarbeitungsmodi, Kameraeinstellungen, 2D-Objektdaten, Kamerasynchronisation und alle 3D-Daten.
