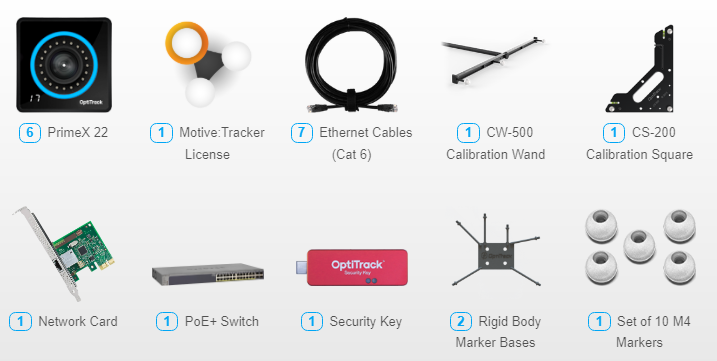

6x PrimeX 22 Motive:Tracker Set VR

2.2 MP resolution | +/- 0.15 mm 3D accuracy1 | 360 FPS native frame rate | 500+ FPS max frame rate2  The Primex 22 blends range, speed, and field of view (FOV) to deliver edge-to-edge coverage with exceptional 3D accuracy. Designed with precision and intuitive usability, it features a 360 FPS frame rate, sub-0.15 mm positional accuracy, and 0.5° rotational error. Its ultra-wide-angle format and advanced "fast glass" 6.8mm lenses provide unmatched capture volumes in smaller spaces or expansive setups.The camera's advanced onboard processing ensures low latency and high accuracy, while easy setup tools and robust synchronization options, including Genlock and Time Code, make it ideal for professional motion capture and OEM integrations. It’s the perfect solution for capturing precise, high-quality 3D data in diverse environments.1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate      Resolution       FOV (standard 6.8mm lens) 360 fps 2048×1088       79°×47° 500 fps 2048×776       79°×35° 1000 fps 2048×384       79°×18°

Rigid body tracking für Drohnen, Roboter, HMDs für VR, AR-Geräte, Live-Action-Kameras, virtuelle Kameras und mehr.Unbefristete Lizenz mit einem Jahr Updatesbenötigt den Security Key

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras:  PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras:  PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Calibration Squares - Micron Series  The CS-200 Calibration Square was designed for flexibility and accuracy during system calibration.

An add-on network card for use in configurations that use a uplink switch.

Precision Spheres with 3M 7610 Reflective Tape and M4 Threads. 10 pack.

28-port Gigabit PoE/PoE+ switch for use with Ethernet cameras. Supports up to: 23 PoE cameras (Primex 13, Primex 13W, Slimx 13) or 12 PoE+ cameras (Primex 41, Primex 22) per switch.

The Security Key is a mobile platform for your Motive 3 software license, allowing the same license to be used on different computers. For example, if you have your Motive setup on one computer, but use Motive for editing motion capture data on another computer, you can simply move the Security Key to the workstation you are using at the time. Software licenses must be locked to a USB Security Key for most system types. If you are purchasing a security key for an existing system, read our Licensing FAQs or contact support before proceeding.

Calibration Wands  This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes:   Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

Black fiber filled nylon plastic rigid body has six M4 threaded posts.
