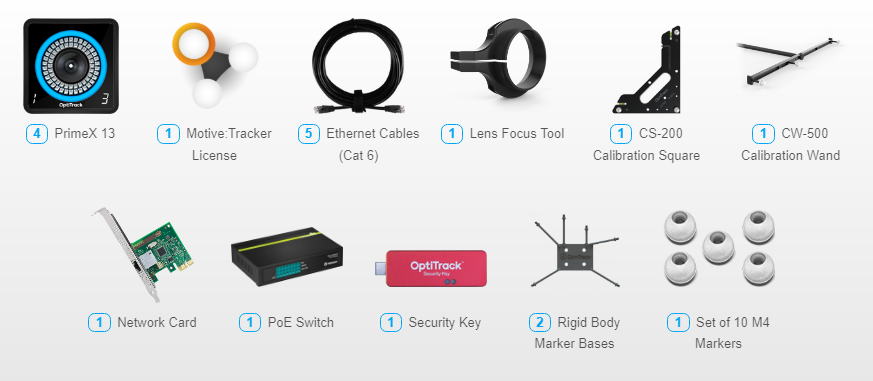

4 x PrimeX 13 Motive:Tracker Set Robotics

1.3 MP resolution | +/- 0.20 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2  The Primex 13 offers high-speed, precise tracking for medium-sized areas, with a compact design and exceptional 3D accuracy. Featuring a 240 FPS frame rate, sub-0.20 mm positional accuracy, and 0.5° rotational error, it supports both active and passive markers. Its custom "fast glass" M12 lenses, filter options, and advanced synchronization capabilities make it ideal for professional applications. Easy setup tools, powerful on-board processing, and an open SDK enhance usability and integration, making it the next generation of the most widely used motion tracking camera in history. 1. 3D accuracy referenced is for Primex 13 and typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate     Resolution      FOV (5.5mm lens)240 fps1280×102456°×45°360 fps1040×83249°×40°500 fps880×70442°×34°1000 fps624×49630°×24°

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras:  PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Prime 13 Focus Tool Part number: ACC0033 For focusing the lens on Prime 13 cameras.

Calibration Squares - Micron Series  The CS-200 Calibration Square was designed for flexibility and accuracy during system calibration.

Calibration Wands  This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes:   Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

An add-on network card for use in configurations that use a uplink switch.

8-port Gigabit PoE/PoE+ switch for use with Ethernet cameras. Supports up to: 7 PoE cameras (Prime13, Prime13W, Slim 13E) or 4 PoE+ cameras (Prime41, Prime17W) per switch. Compatible Cameras: S250e / Slim 13e / All Prime Cameras

Black fiber filled nylon plastic rigid body has six M4 threaded posts.

Precision Spheres with 3M 7610 Reflective Tape and M4 Threads. 10 pack.

Rigid body tracking für Drohnen, Roboter, HMDs für VR, AR-Geräte, Live-Action-Kameras, virtuelle Kameras und mehr.Unbefristete Lizenz mit einem Jahr Updatesbenötigt den Security Key

The Security Key is a mobile platform for your Motive 3 software license, allowing the same license to be used on different computers. For example, if you have your Motive setup on one computer, but use Motive for editing motion capture data on another computer, you can simply move the Security Key to the workstation you are using at the time. Software licenses must be locked to a USB Security Key for most system types. If you are purchasing a security key for an existing system, read our Licensing FAQs or contact support before proceeding.
