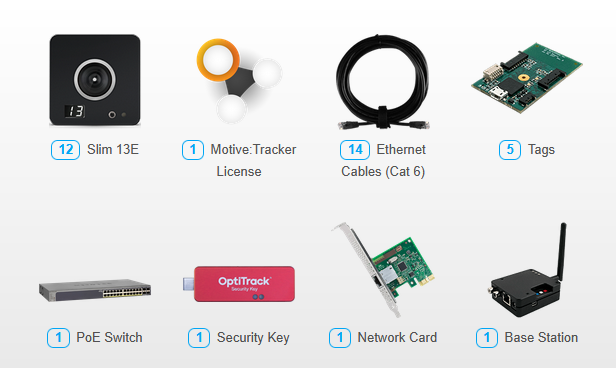

12x SlimX 13 Motive:Tracker Set VR

1.3 MP resolution | +/- 0.30 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2 With a compact 2.7" design and lightweight 12-ounce build, the Slimx 13 excels in VR, AR, and high-speed tracking at up to 240 FPS. Custom M12 lenses and 850nm IR illumination ensure precise 3D data, while mix-and-match compatibility with Prime cameras enables versatile configurations. Features like software-selectable filters, on-camera status indicators, and seamless OEM integration make it ideal for both professional setups and computer vision applications. 1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate      Resolution         FOV (3.5mm lens) 240 fps   1280×1024 82°×70° 360 fps 1040×832 71°×59° 500 fps 880×704 62°×52° 1000 fps 624×496 46°×38°

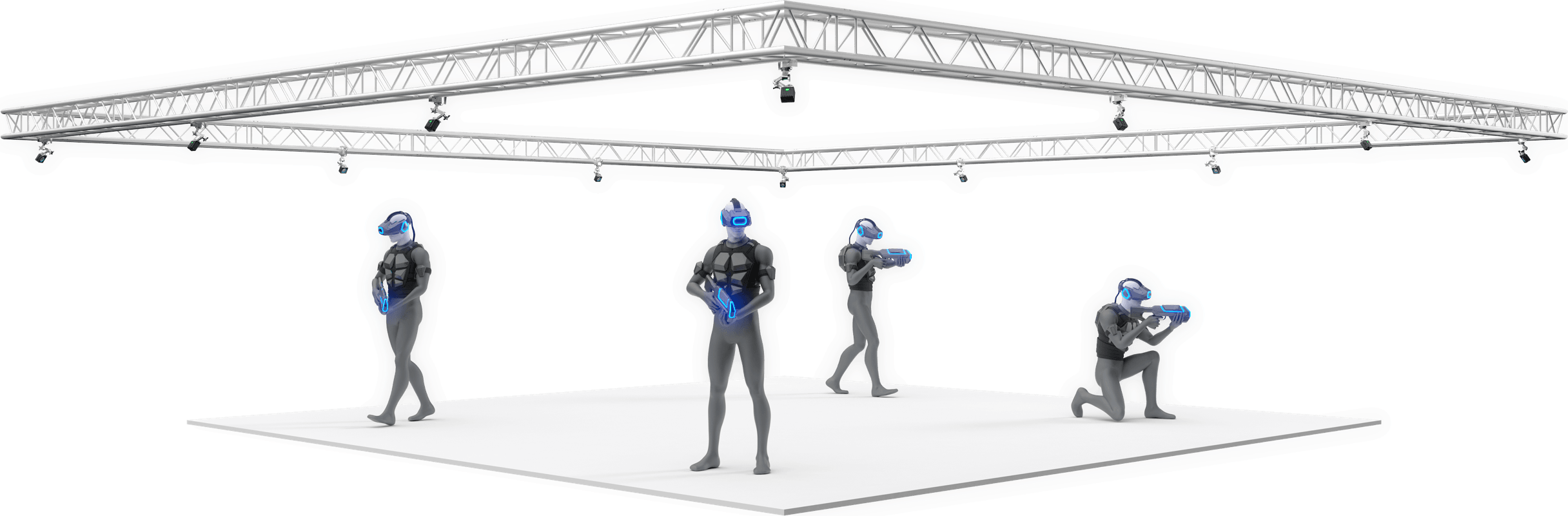

Rigid body tracking für Drohnen, Roboter, HMDs für VR, AR-Geräte, Live-Action-Kameras, virtuelle Kameras und mehr.Unbefristete Lizenz mit einem Jahr Updatesbenötigt den Security Key

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras:  PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras:  PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

The Security Key M gives you a portable way to manage your Motive 3.1 software license across multiple computers. Instead of locking your license to a single workstation, the USB Security Key allows you to move your Motive license between compatible machines as needed.For example, you may run your capture from one computer and review/edit motion capture data on another. Simply plug the Security Key into the workstation you are using, and your Motive license moves with you.Most OptiTrack systems require software licenses to be locked to a USB Security Key. If you are purchasing a Security Key for an existing system, please review our Licensing FAQs or contact Support before ordering to ensure compatibility. Software licenses must be locked to a USB Security Key for most system types. If you are purchasing a security key for an existing system, read our Licensing FAQs or contact support before proceeding.

28-port Gigabit PoE/PoE+ switch for use with Ethernet cameras. Supports up to: 23 PoE cameras (Primex 13, Primex 13W, Slimx 13) or 12 PoE+ cameras (Primex 41, Primex 22) per switch.

An add-on network card for use in configurations that use a uplink switch.

Synchronizes OptiTrack cameras with Active Tags. One required per tracking system.Approximately 100’ range from Base station to Tags.
