V120:Duo
Produktinformationen "V120:Duo"

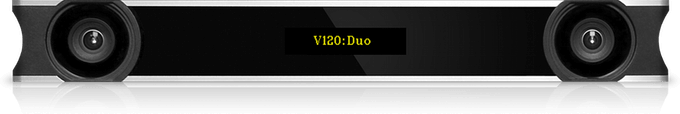

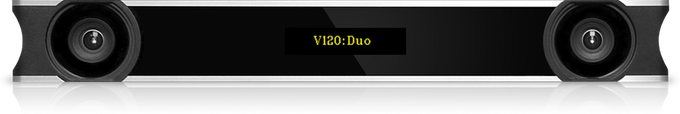

The V120:Duo delivers plug-and-play motion tracking with dual-camera 6DoF object tracking in a compact and portable design. Pre-calibrated for out-of-the-box use, it provides leading optical tracking accuracy and flexibility. The system supports high-speed capture at 120 FPS using two VGA sensors and advanced on-camera image processing for efficient tracking.
Bundled with Motive:Tracker software, the Duo enables real-time data streaming, recording, playback, and export in formats like C3D and CSV. The software supports protocols like VRPN, trackd, and NatNet SDK for seamless integration.
Key features include adjustable camera settings, external synchronization for hardware compatibility, and sub-millimeter accuracy. Its portable form factor makes it ideal for rapid deployment and desktop use, while the Motive:Tracker API facilitates seamless OEM integration for custom applications.
| Camera Body: | 1/4"-20 tripod thread |
|---|---|

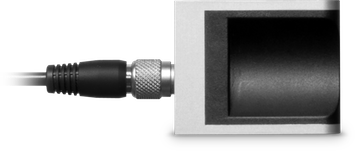

| Connections: | USB 2.0 data port |
| Depth: | 2 inches (50.8 mm) |
| Global Shutter : | Default Speed: 1 ms, Minimum Speed: 20 µs |
| Height: | 1.6 inches (40.6 mm) |
| Image Processing Types: | MJPEG Grayscale, Precision Grayscale, Raw Greyscale, Segment |
| LED Ring: | 26 (x3), Adjustable brightness, Strobe or Continuous Illumination, Wavelength: 850 nm IR |
| Latency: | 8.3 ms |
| Lens & Filter: | Left & Right Cameras: 800 nm IR long pass filter |
| Native Framerate: | 120 Hz |
| Resolution: | 640 × 480 |
| Stock Lens: | 3.5 mm F#2.0 / 47° horizontal FOV / 43° vertical FOV |
| Weight: | 1.3 pounds (0.6 kg) |
| Width: | 11 inches (279.4 mm) |
Anmelden
Plug-and-play multi-camera motion tracking
Enjoy many of the same benefits as large scale, multi-camera tracking—such as enhanced accuracy, larger capture volumes, and tracking of multiple, customizable objects—distilled down to a single hardware unit and simple I/O.
Super portable, desktop friendly capture
At less than two feet in total length, the V120:Duo packs comprehensive tracking capabilities into a portable form factor—enabling easy transport and rapid deployment of the entire system.
Bundled engineering-grade software
Every purchase of Duo or Trio hardware includes a free license of Motive:Tracker, OptiTrack's engineering-grade rigid body and marker tracking application. Features include:

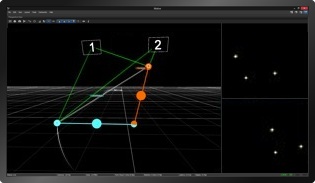

6DoF object tracking
Quickly create custom rigid bodies to track position and orientation in all six degrees of freedom. Custom marker arrangements enable you to track a variety of object shapes with passive markers and active LEDs. Additionally, high level tracking filters and constraints can be implemented to further tune when markers and rigid bodies are tracked.
Real-time data streaming
Built-in support for industry standard VRPN and trackd protocols makes integrating real time tracking data with your applications a snap. Stream to or from your application using the included network transport for convenient cross-platform communication. For a wider range of data streaming types, use OptiTrack's NatNet SDK.
Data recording, playback, and export
Tracking data can be recorded within Motive:Tracker for playback and post-processing. Export recorded data in both C3D and CSV formats for motion capture and analysis.
Proven camera architecture
The Trio is built on OptiTrack's custom image processing platform, which offers professional motion tracking capabilities at unparalleled pricing.
On-camera image processing
A variety of pre-processed image types are supported on-camera, resulting in decreased bandwidth and CPU load and more efficient motion tracking. Image processing types include:
- Precision Grayscale
- Segment
- MJPEG-compressed
- grayscale Raw grayscale
Camera control
Access a variety of camera settings with the Motive:Tracker Application and API for greater control over what your cameras capture and report to the PC for processing. Available settings include:
- Image processing type
- Frame rate
- Exposure
- Threshold
- Illumination
- Filter switching
- And more...
Precise, efficient motion tracking
The Duo is capable of capturing fast moving objects with its global shutter imager and 120 FPS capture speed. Using advanced image processing to maximize resolution from its two 640 × 480 VGA sensors, the Duo can also track markers down to sub-millimeter movements with repeatable accuracy.
External synchronization
External sync in/out is supported with the included I/O-X sync box, for seamless compatibility with shutter glasses and other hardware devices.
OEM integration
Incorporate the Duo into your own applications for seamless OEM integration via the Motive:Tracker API, which is included free with every Trio purchase. This API provides software development access to the full tracking and streaming capabilities of the Trio.
